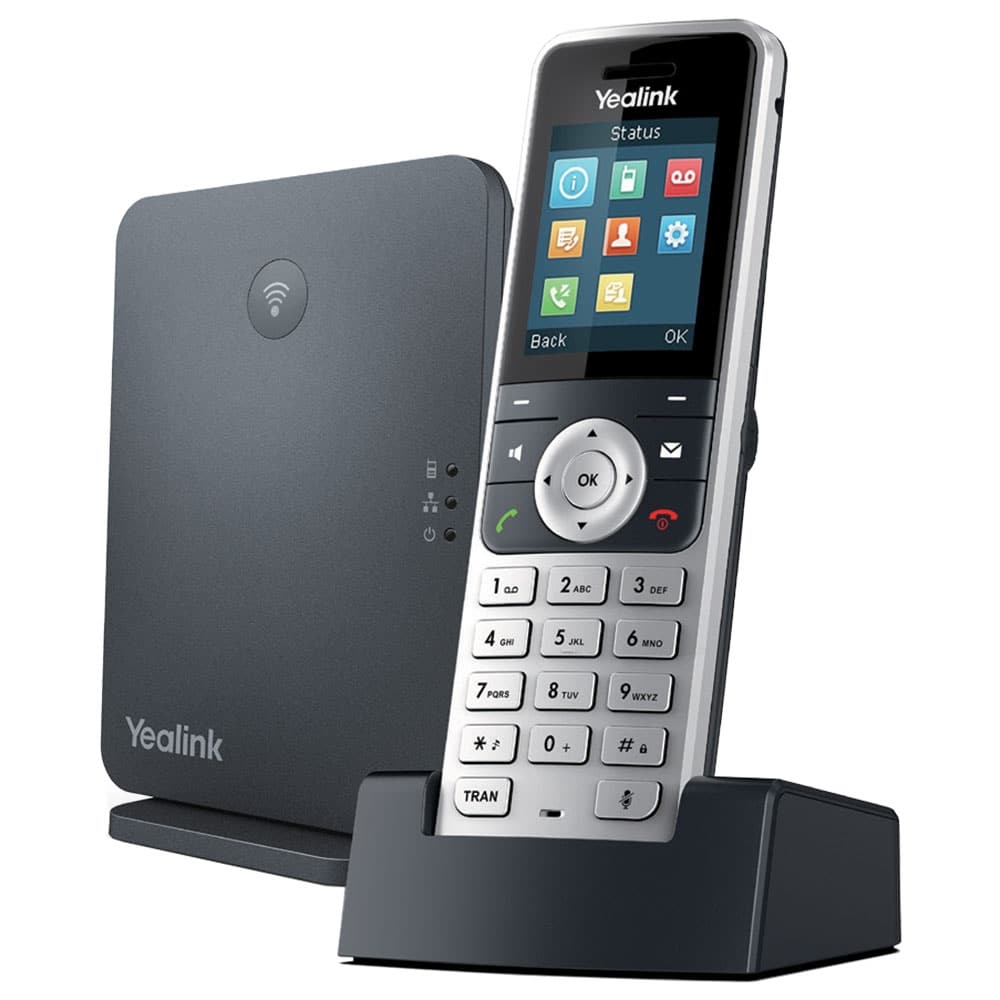

W53P
Yealink
Original New
1 Year
Availability: | |
---|---|
Quantity: | |
Product Descriptio
Audio Features | > Full-duplex speakerphone > Hearing Aid Compatibility (HAC) compliant > Receiver volume control: 5 steps > Ringer volume control: 5 steps+off > Multiple advisory tones > Acoustic warning for low battery status > DTMF > Wideband codec: Opus, AMR-WB (optional), G.722 > Narrowband codec: PCMU, PCMA, G.726, G.729, iLBC > VAD, CNG, AGC, PLC, AJB > AEC (supported by W53H) > Support VQ-RTCPXR (RFC6035), RTCP-XR |
Network Features | > SIP v1 (RFC2543), v2 (RFC3261) > SNTP/NTP > VLAN (802.1Q and 802.1P) > 802.1x, LLDP > STUN Client (NAT Traversal) > UDP/TCP/TLS > IP assignment: static/DHCP > Support outbound proxy server backup |
Personalization | > 9 ringer melodies > Screen saver > Multilingual user interface |
Phone Features | > Up to 8 simultaneous calls > Up to 8 handsets > Up to 8 SIP accounts > Up to 2 simultaneous calls per handset > Up to 5 repeaters per base station (RT20/RT20U) > Up to 6 repeaters per base station (RT30) > Handset selection for receiving call > Handset and number selection for placing call > Paging, intercom, auto answer, dial plan > Call hold, call transfer, 3-way conference > Switching between calls > Call waiting, mute, silence, DND > Caller ID with name and number > Anonymous call, Anonymous call rejection > Call forward (always/busy/no answer) > Speed dial, voicemail, redial > Message Waiting Indication (MWI) > Music on hold (server-based) > Local phonebook for up to 800 entries (store in the base) > Remote phonebook/LDAP > Phonebook search/import/export > Call history (all/missed/placed/received) > Direct IP call without SIP proxy > Reset to factory, reboot > Keypad lock, emergency call > Broadsoft directory, BroadSoft call log > Broadworks feature key synchronization > Shared Call Appearance (SCA) |
Security | > Open VPN > Transport Layer Security (TLS) > HTTPS (server/client), SRTP (RFC3711) > Digest authentication > Secure configuration file via AES encryption > Support SHA256/SHA512/SHA384 > Three-level configuration mode: Admin/Var/User |
DECT | > Frequency bands: 1880 - 1900 MHz (Europe), 1920 - 1930 MHz (US) > DECT Standards: CAT-iq2.0 |
Connectors | > 1 x RJ45 10/100M Ethernet port > Power over Ethernet (IEEE 802.3af), Class 1 > Headset jack (3.5 mm) |
Management | > Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS > Auto-provision with PnP > Handset upgrade: OTA (Over-The-Air) > Configuration: browser/phone/auto-provision > Trace package and system log export |
Physical Features | > Indoor Range: 50m (in ideal conditions) > Outdoor Range: 300m (in ideal conditions) > Standby Time: 200 hours (in ideal conditions) > Talk Time: 18 hours (in ideal conditions) > 1.8" 128 x 160-pixel TFT color display > Desktop or wall mountable > LCD backlight, key backlight > Energy-saving ECO mode/ECO Mode+ > 12 key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keys > Three LED indicators on W60B: - 1 x Registration LED - 1 x Network Status LED - 1 x Power Indicator LED > External Yealink AC adapter : AC 100-240V Input and DC 5V/600mA Output > Color: Handset: Alabaster Silver; Base: Classic Grey > Phone size: 150mm x 48.4mm x 25mm > Base station size: 130mm x 100mm x 25.1mm > Operating humidity: 10~95% > Operating temperature: 0~+40°C (+32~104°F) |
Package features | > Package content: - W53H Handset - W60B Base Station - Base Stand - Charger Cradle - Two Power Adapters - Ethernet Cable - Belt Clip - Rechargeable Battery - Quick Start Guide - Handset Protective Case (Optional) > Qty/CNT: 10 PCS > Giftbox size: 205mm*176mm*95mm > Carton meas: 502mm* 362mm*211mm > N.W: 6.9 kg > G.W: 7.5 kg |
